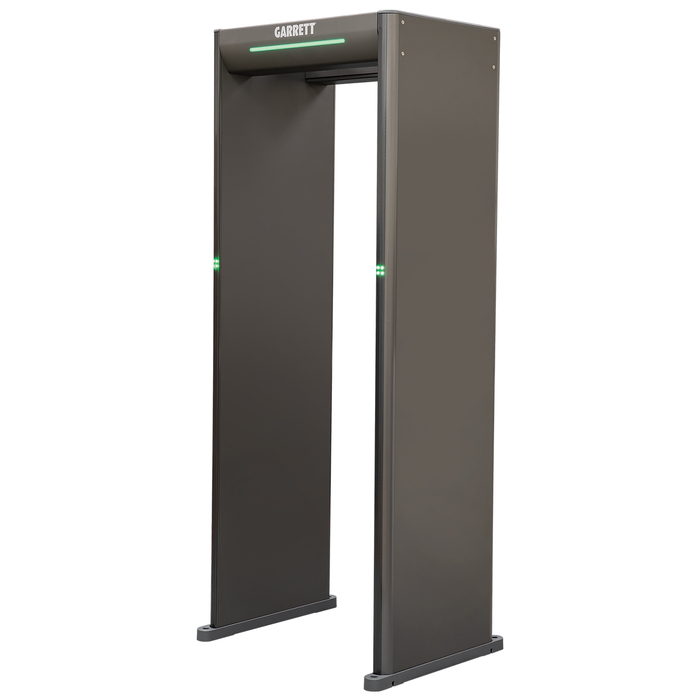

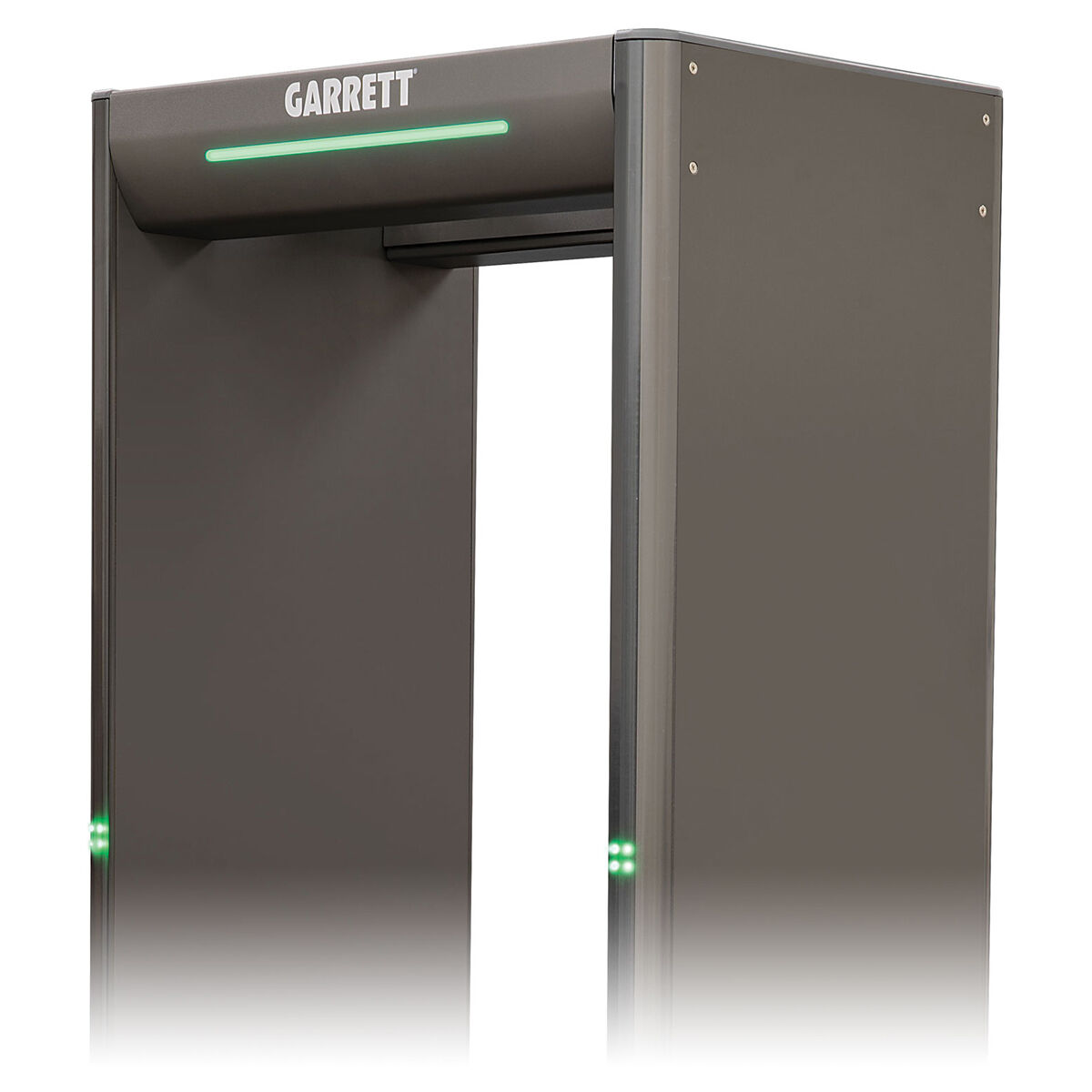

Garrett Paragon Walk-Through Metal Detector

Paragon^™

Walk-Through Metal Detector

BEST IN CLASS SECURITY

Models:

• • Standard 30" Passageway (GMD-1172002)
  • ADA Compliant 32.5" Passageway (GMD-1172004)

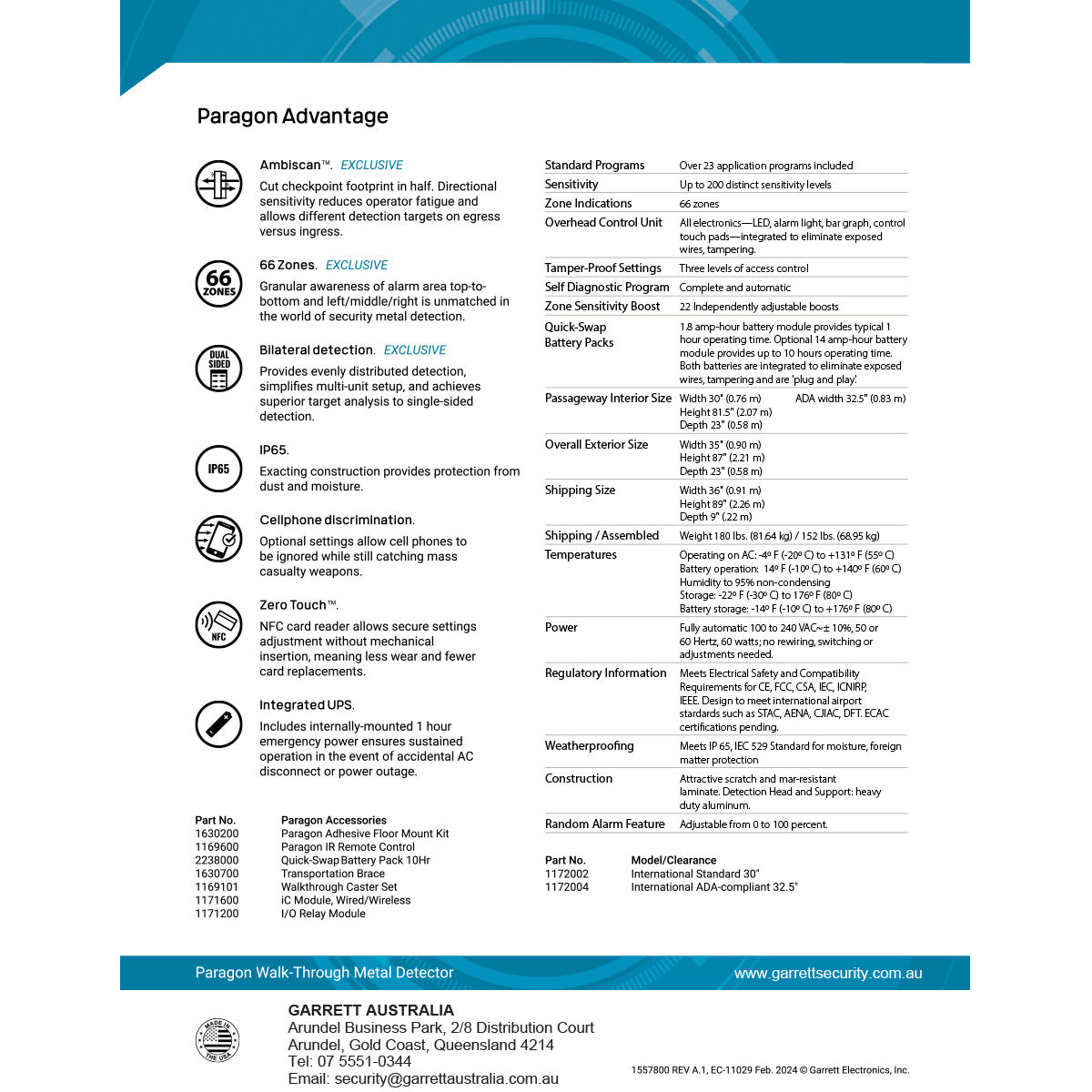

Click Here: Paragon Walk-Through Metal Detector Specification Sheet

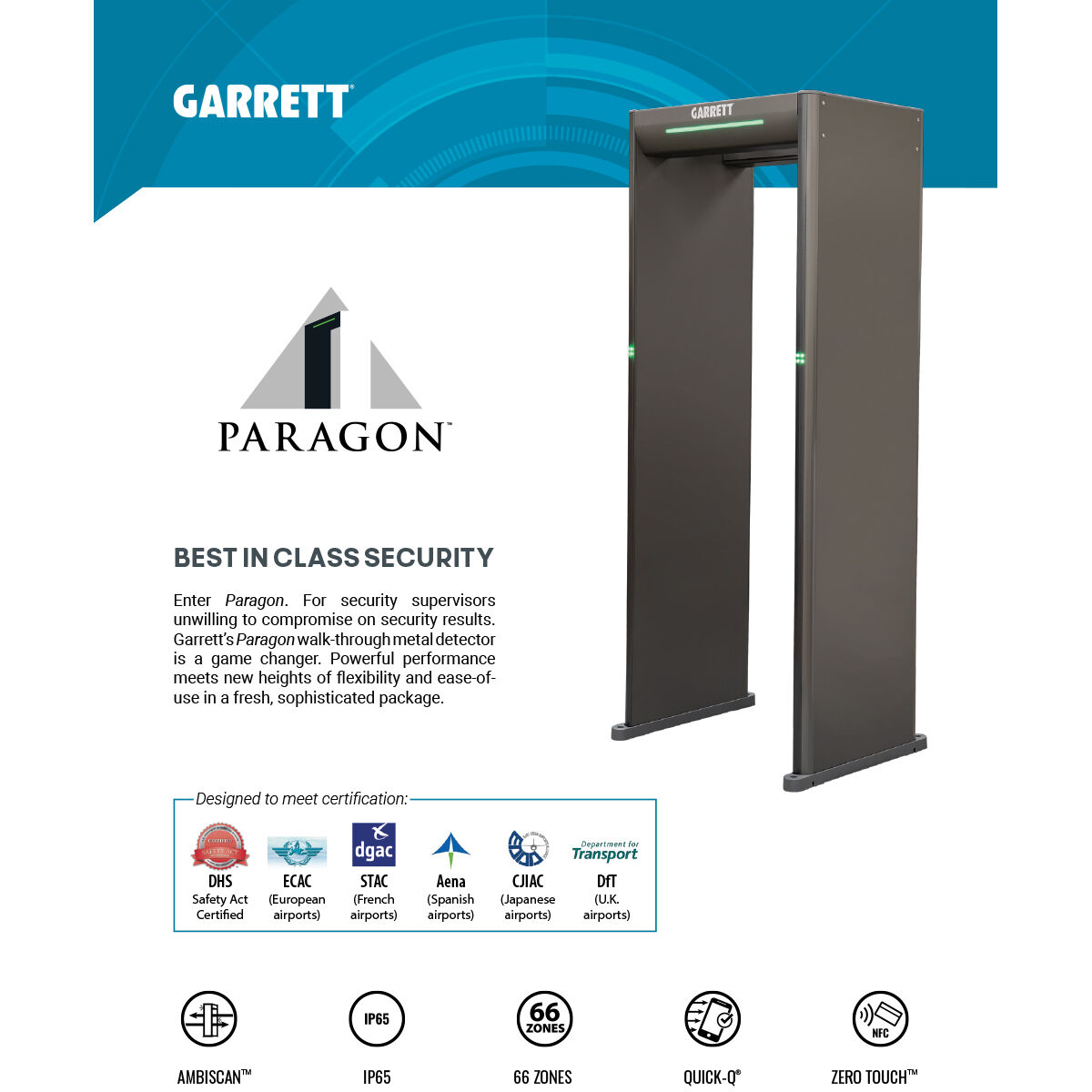

Click Here: Paragon Walk-Through Metal Detector e-Brochure

BEST IN CLASS SECURITY

Enter Paragon. For security supervisors unwilling to compromise on security results. Garrett’s Paragon walk-through metal detector is a game changer. Powerful performance meets new heights of flexibility and ease-of use in a fresh, sophisticated package.

HIGH THROUGHPUT, HIGH SENSITIVITY

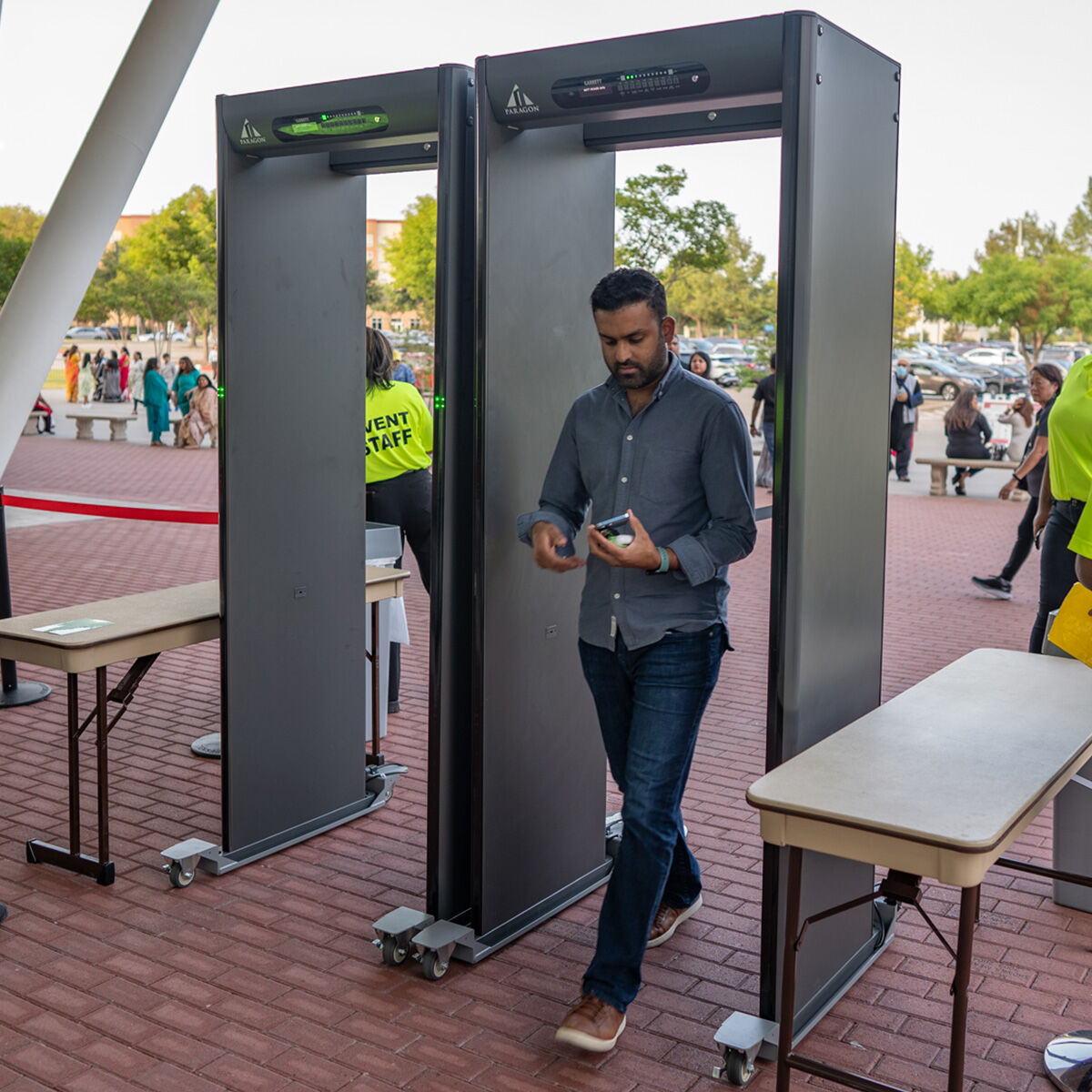

Quick-Q and Zero Touch: Zero-divestment screening and touchless setup for speedy checkpoint operations. Optional settings allow cell phones to be ignored while still catching mass casualty weapons.

200 Sensitivity Levels: Combine with 23+ programs for maximum security choice.

CATCH THREATS QUICKLY

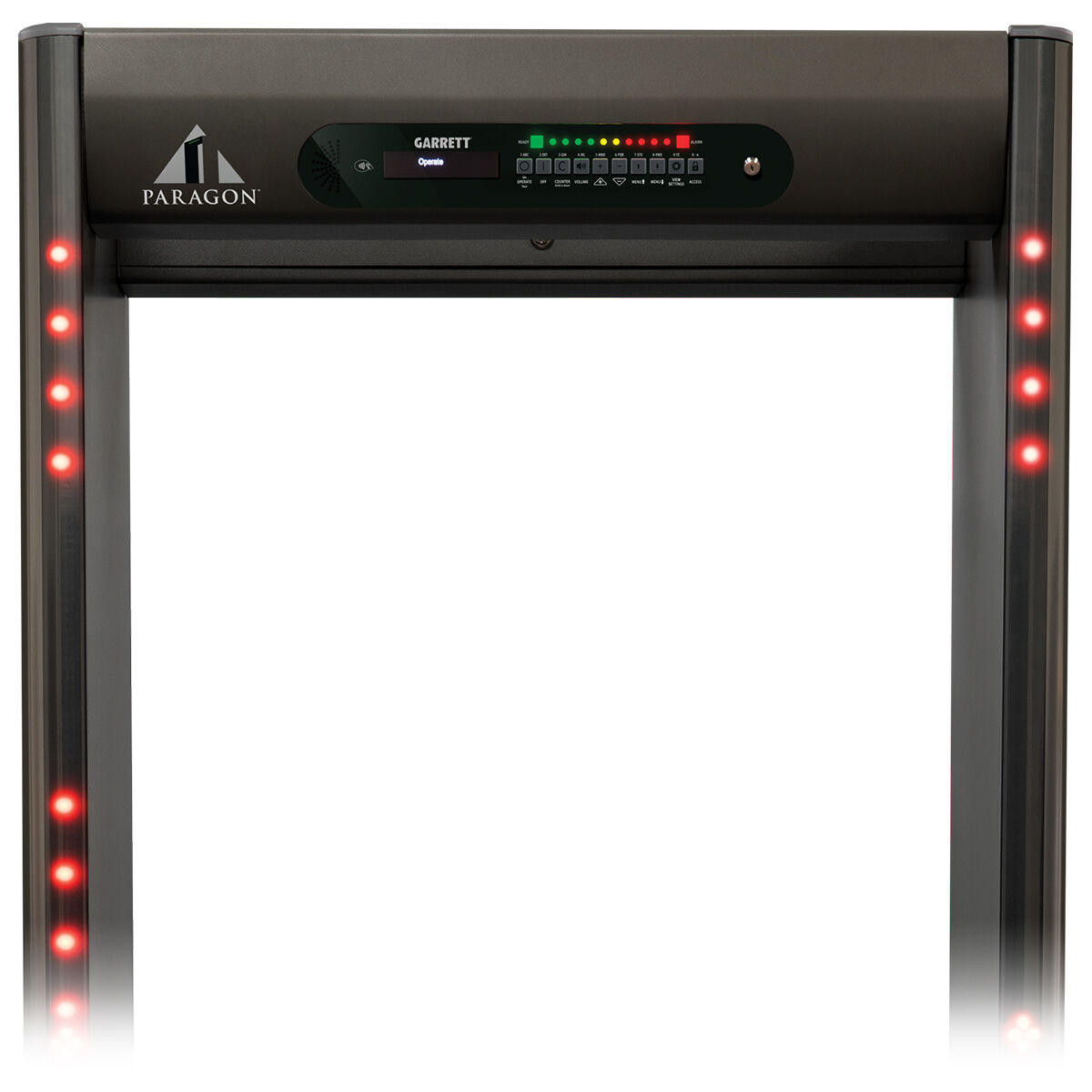

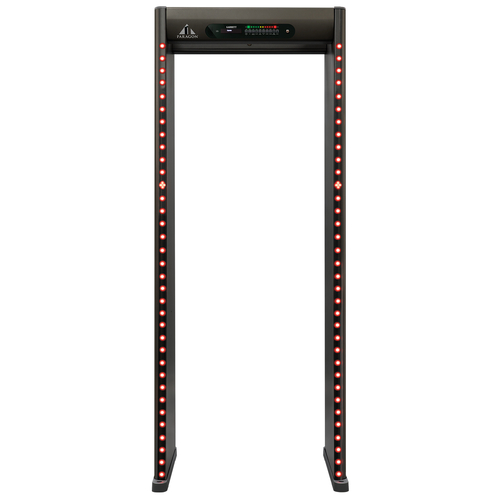

66 Detection Zones: Swiftly pinpoint threats with high precision. Paragon brings with it an industry-leading 66 zones – left/center/right identification of targets across 22 horizontal bands. This high-resolution detection lets operators find targets quickly and efficiently during secondary screening without diverting their attention away from the checkpoint.

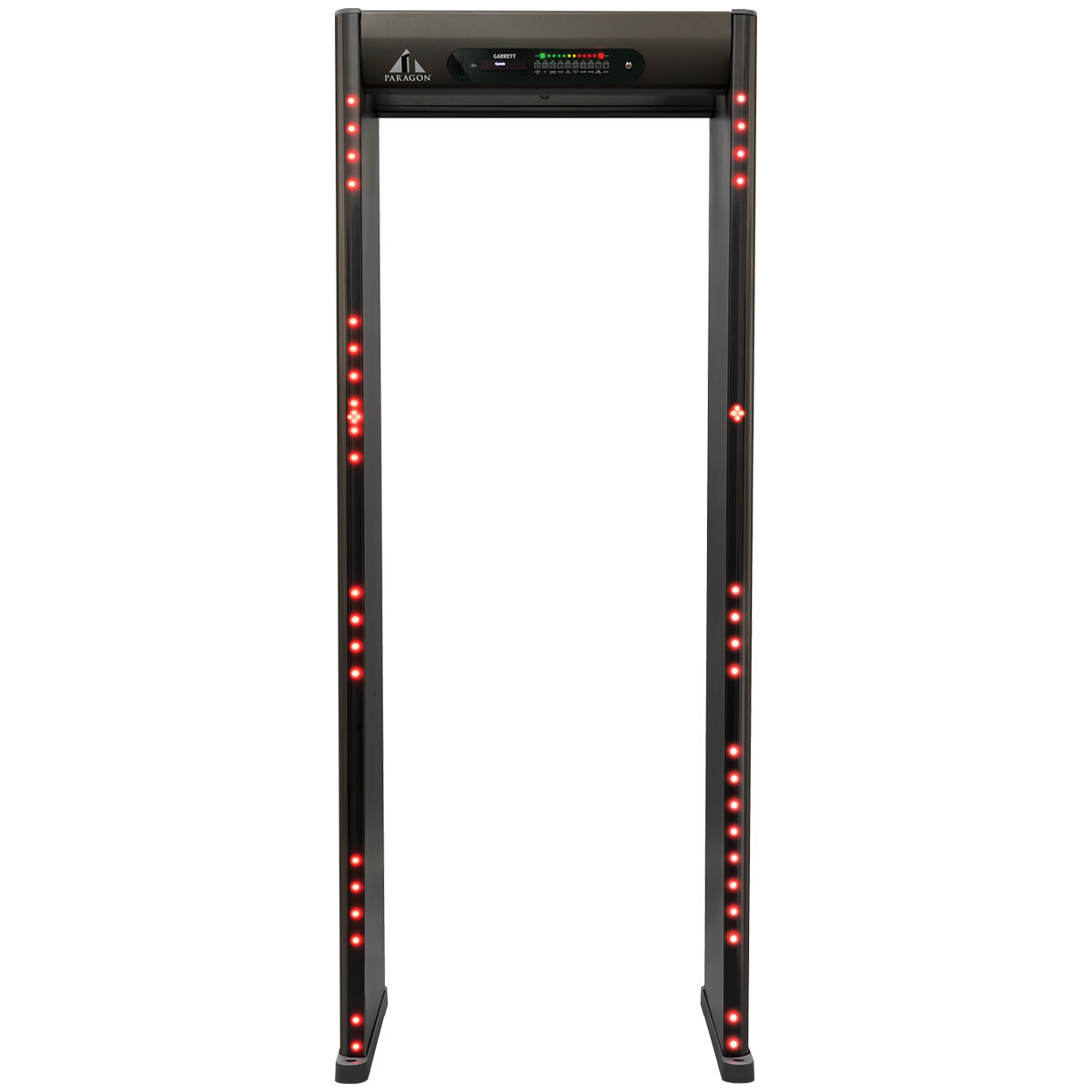

Emphasize high risk zones with Zone Boost. All 22 of Paragon’s horizontal bands are independently adjustable for maximum finesse in addressing the detection needs of your facility.

Reduced Distractions: Focus on high-risk areas for efficient security.

FLEXIBLE, DURABLE

Uninterrupted Operation: IP 65 and integrated UPS keep the system running, indoors and outdoors.
3-year warranty: Quality, made in the USA manufacturing.

DOUBLE THE DETECTION

Bilateral Detection: Eliminate blind spots with even, dual-sided scanning.

Paragon has dual transmit and receive capability in both panels, a Garrett industry exclusive.

This means:

• Evenly distributed detection across the walkthrough portal. Single-sided detectors experience falloff as the transmit strength varies from left to right. Paragon eliminates this weakness
• Simplified multi-unit setup. Paragon’s doubled perspective improves its ability to account for and eliminate the interference caused by other walkthroughs in close proximity.
• Superior target analysis. Paragon’s bilateral screening is the electromagnetic equivalent of binocular vision, enhancing the ability of the detector to precisely identify and distinguish objects within the portal.

Ambiscan: Differentiate program and sensitivity for both inbound and outbound traffic.

With Ambiscan, one detector does the work of two. This Paragon feature allows supervisors to set two distinct sensitivities based on the direction of traffic. Catch weapons coming in. Catch company property going out.

• Halves the size of your security checkpoint.
• Eliminate user error from excess detectors or repeated settings changes.
• Reduce operator fatigue by only alarming on the targets you want to catch.

Secure crosspieces.
Both detection head and crosspiece are key-lock secured to prevent tampering.

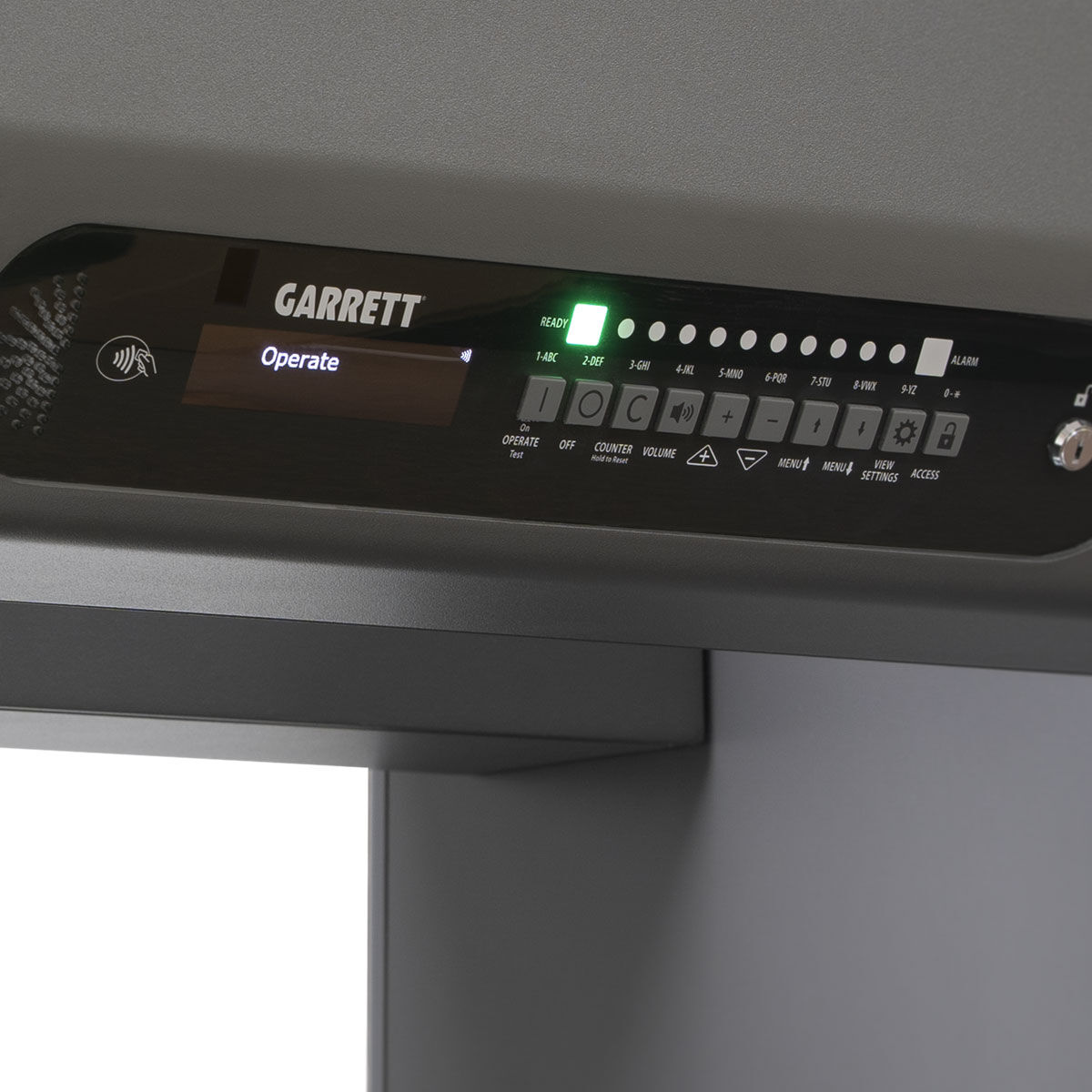

Zero Touch^™.
NFC card reader allows settings adjustment without mechanical insertion, meaning less wear and fewer card replacements.

TOF.
Time of Flight sensors detect both the presence of people and the direction of movement through the walkthrough portal.

Integrated UPS.
Internally-mounted emergency power ensures continuous operation in the event of accidental AC disconnect or power outage.

High-visibility pacing lights.
Allows patrons and staff to clearly see entry locations at large events.

Cabinet storage.
Allows charging of handheld detector while not in use.

IP 65.
Exacting construction provides protection from dust and moisture.

Sophisticated design.
Paragon’s smooth and trim structure is as at-home in an office building as a stadium.
