Fisher XLT17 Leak Detector

Fishers XLT-17 takes leak detection to a new level. The ultra-sensitive Multi-Sensor, combined with high performance electronics and crystal clear audio headphones provide a new standard for leak detection equipment.

FEATURES
Detects and pinpoints liquid leaks in pipes
4 Frequency Filters: Low Pass, High Pass, Band Pass and All Pass
Last setting memory feature
Touch-control keypad
Shielded sensor for reduced response to outside noise
Improved headset for clearer sound response
Automatic battery test – real time voltage level
Approx 50 Hours with two 9V batteries (not included)

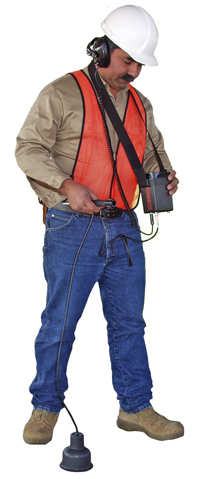

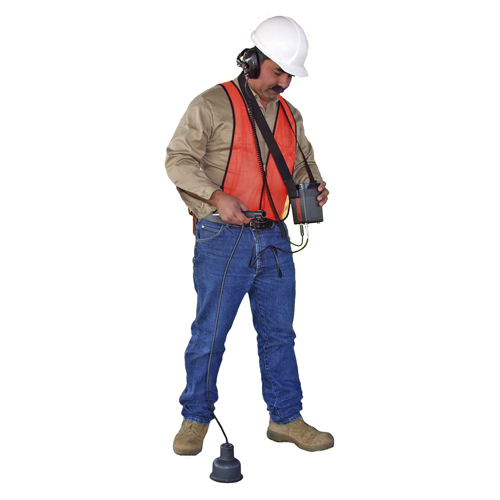

Compact control box that can be worn around the neck or over the shoulder with an attachable strap

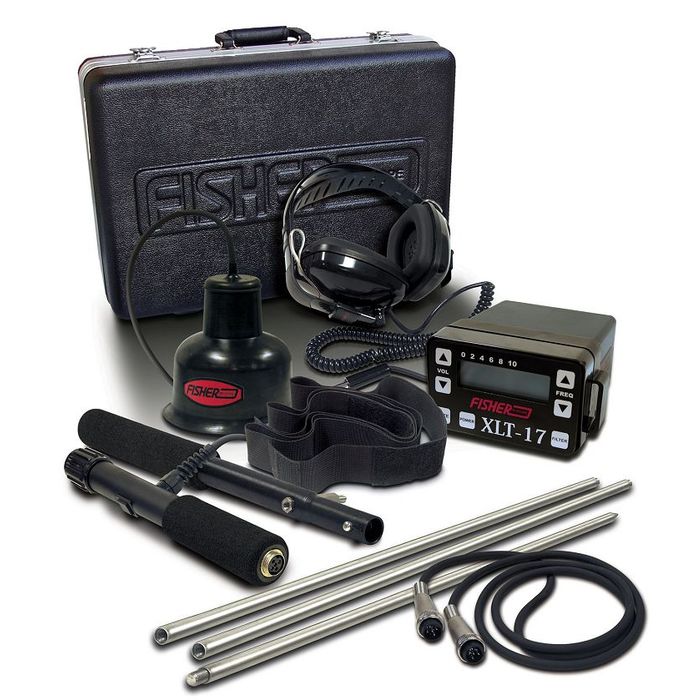

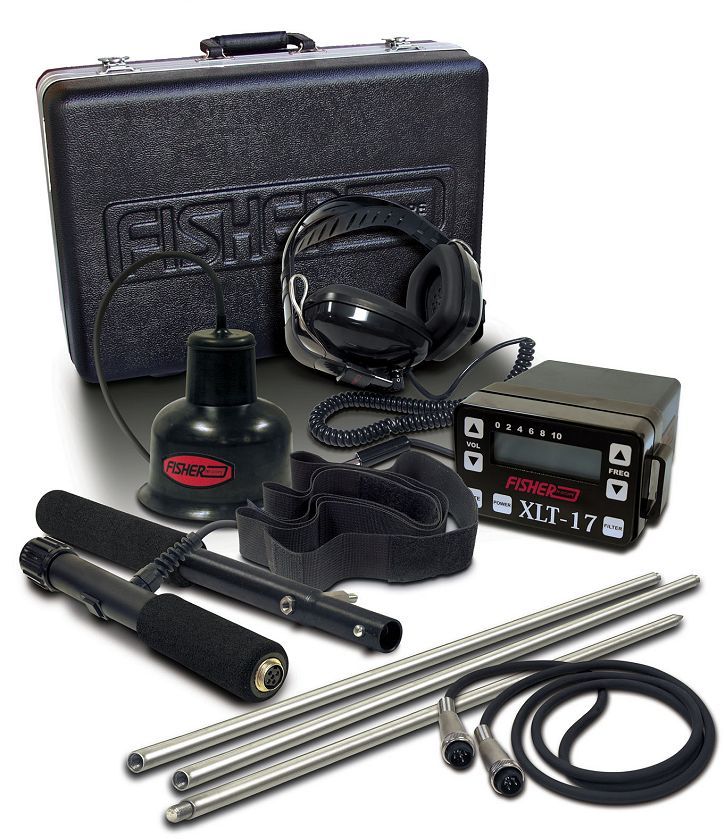

INCLUDES

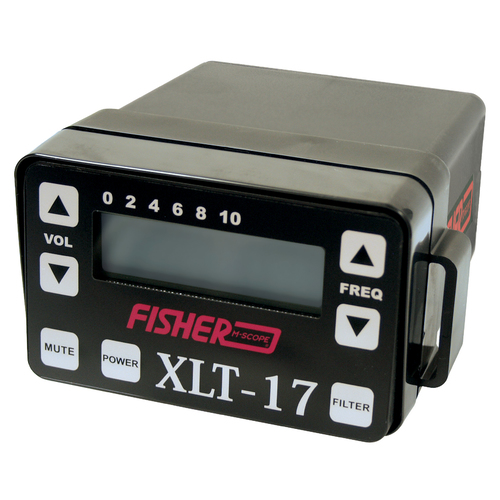

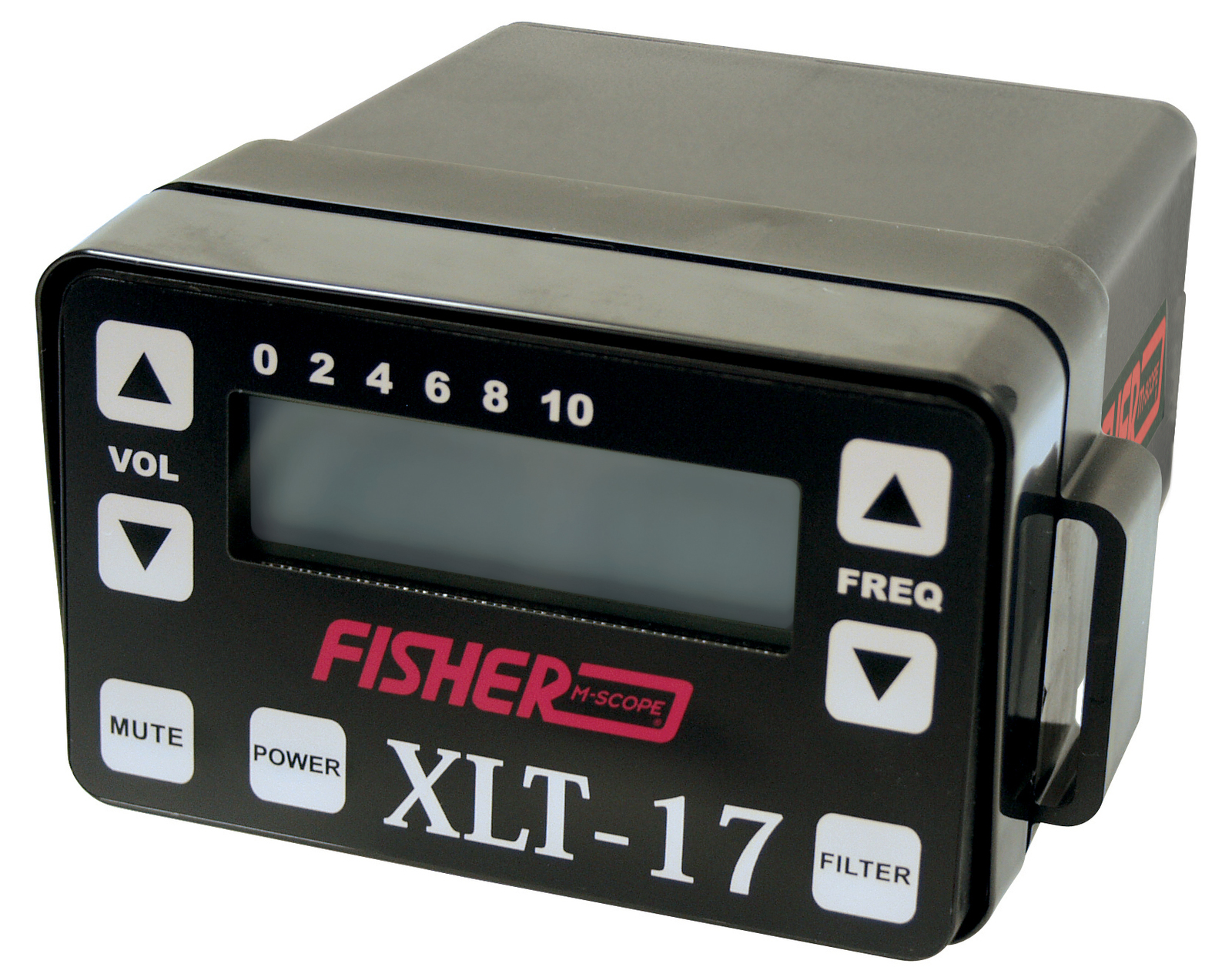

Control Box

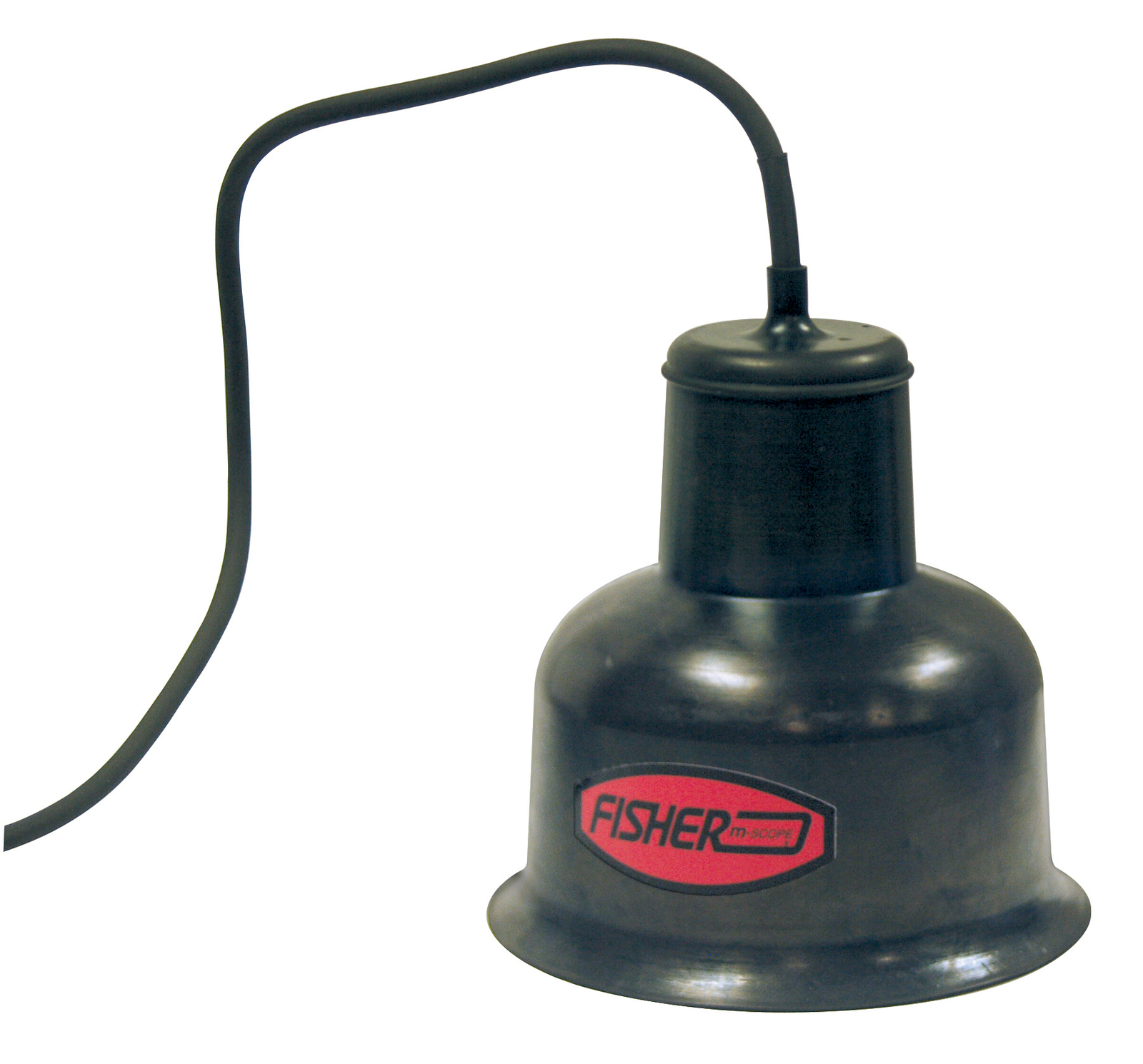

Multi-Sensor

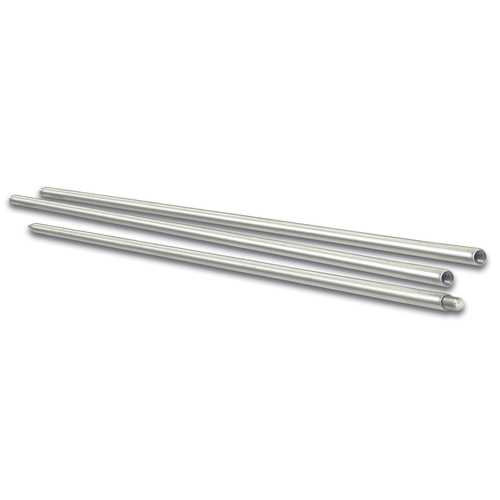

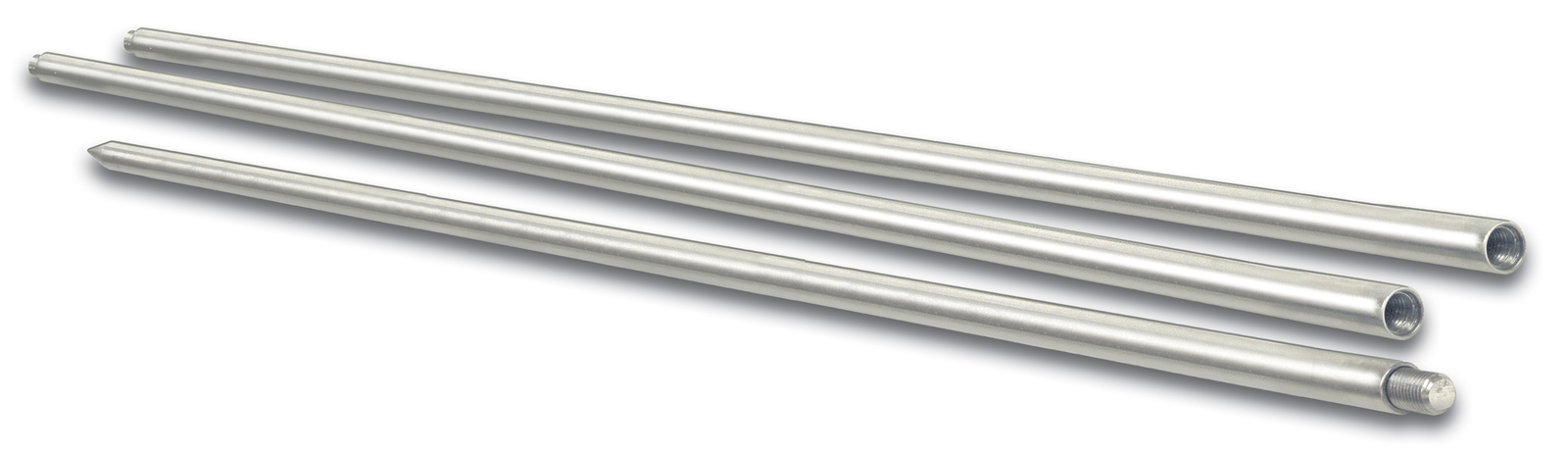

Sound Rods

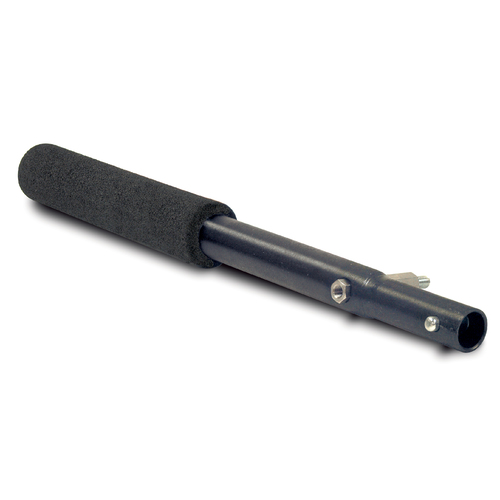

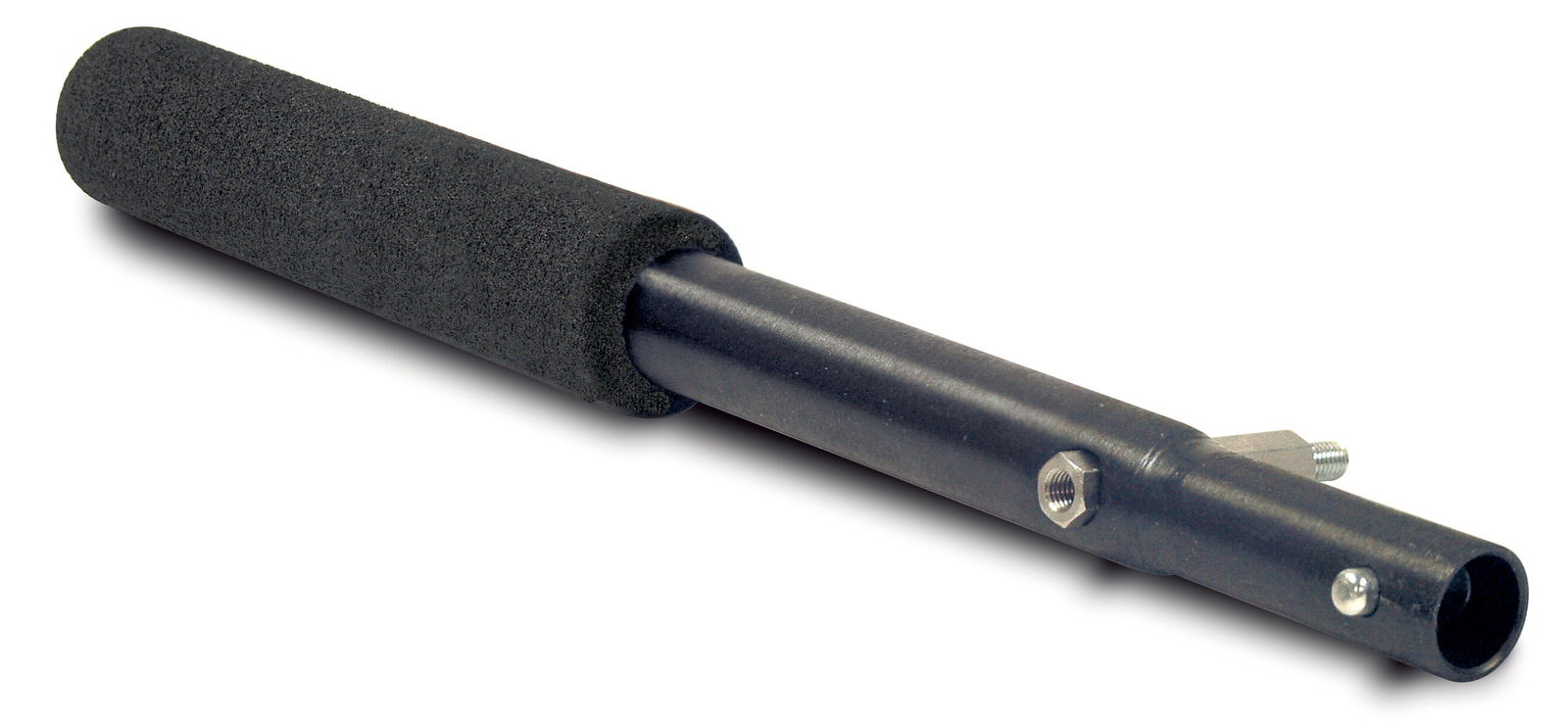

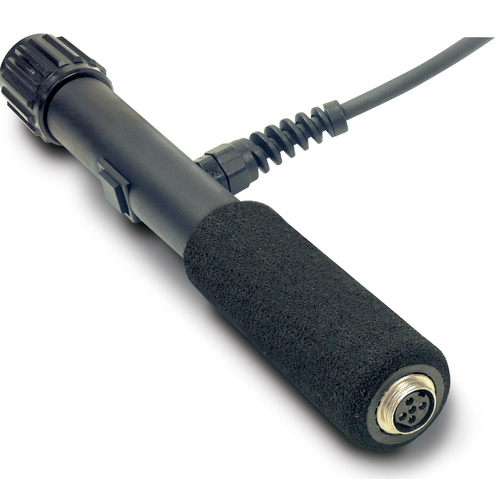

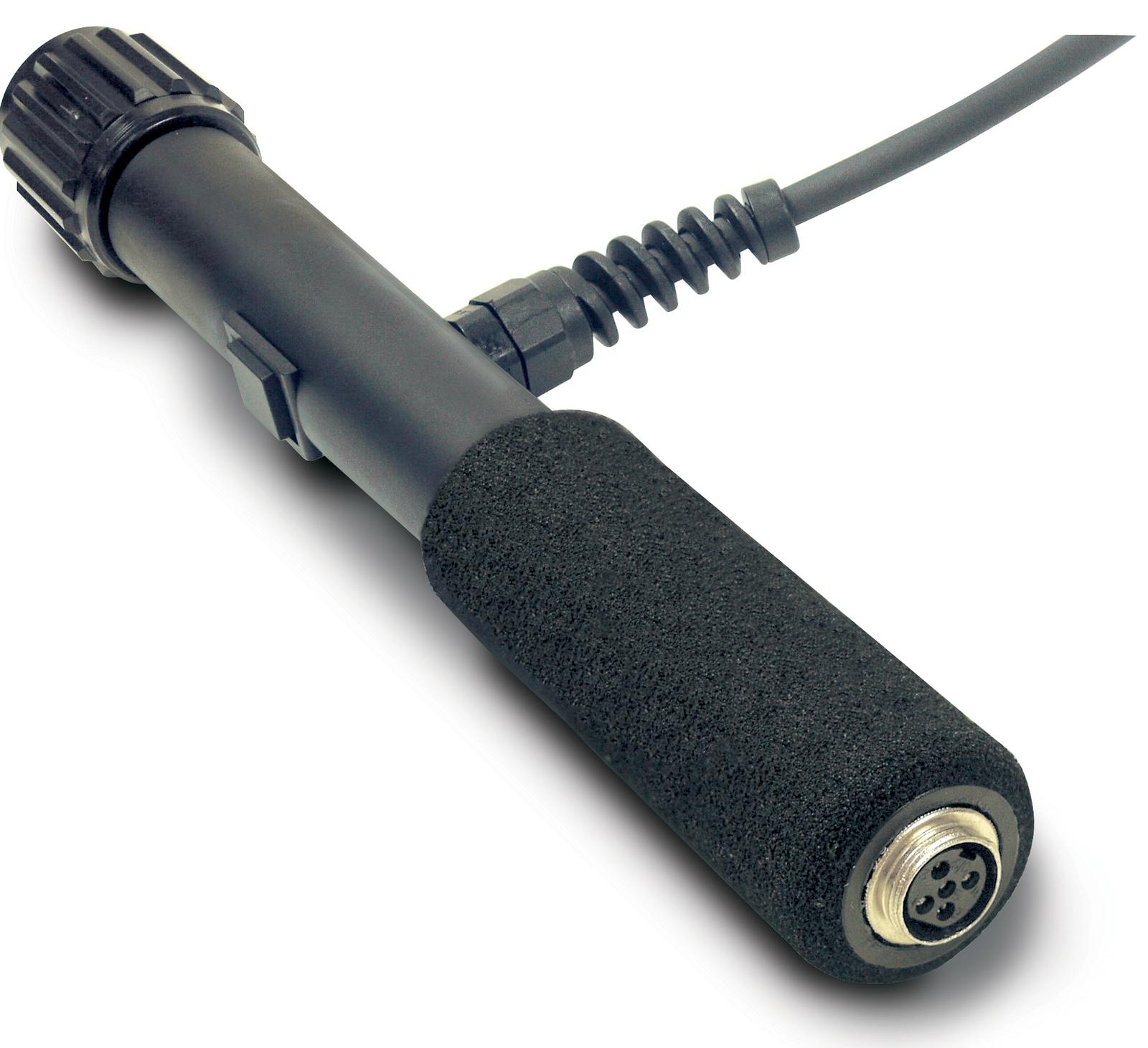

Multi-Sensor Handle

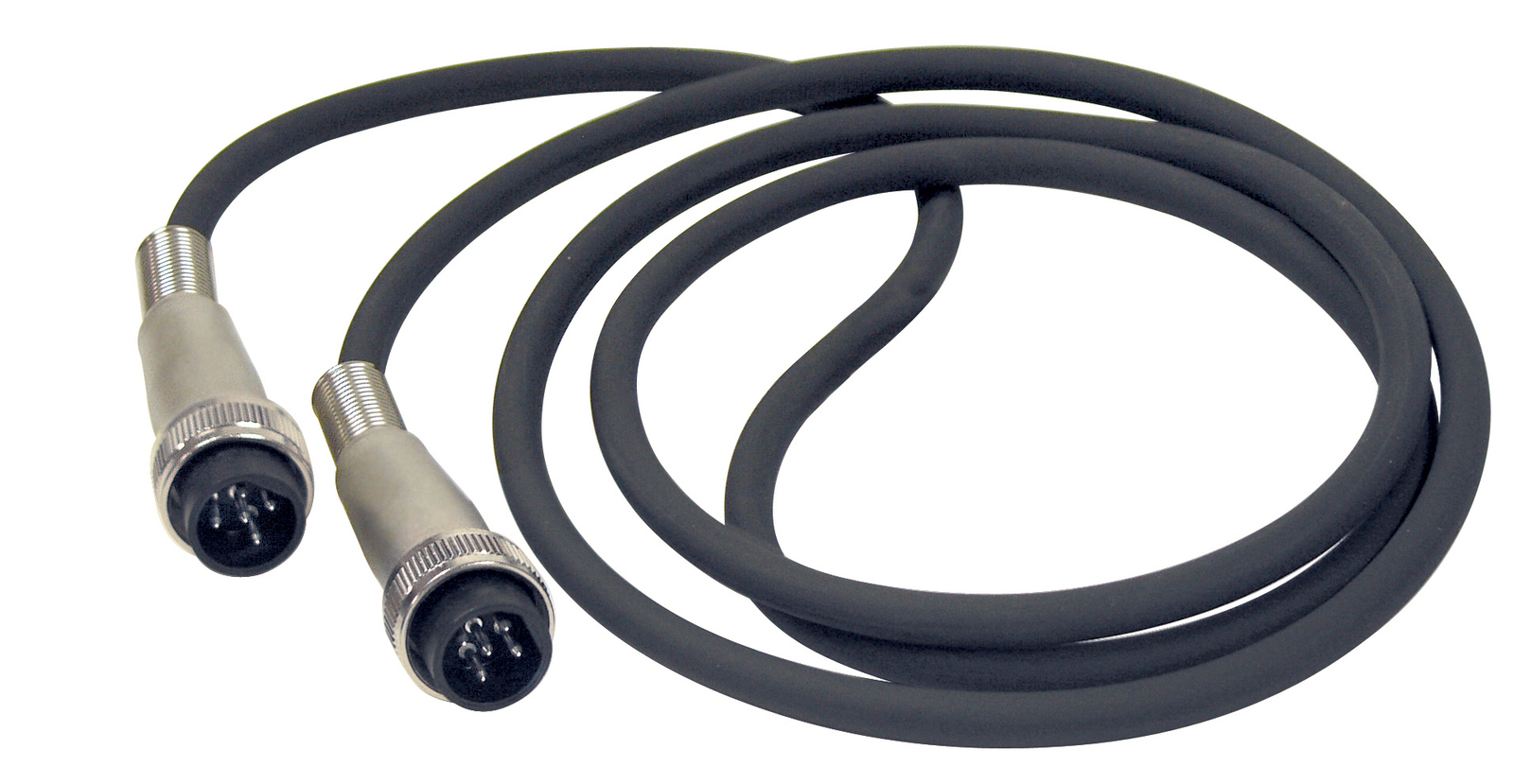

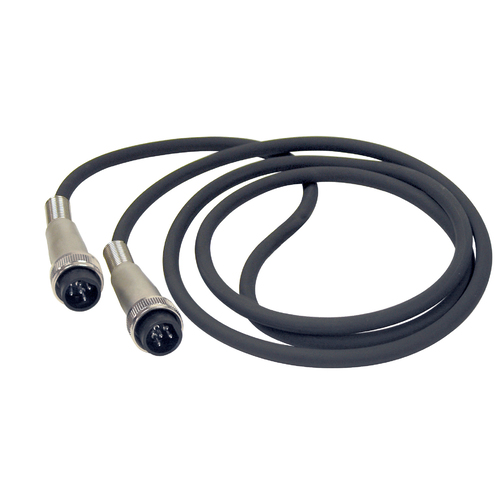

Sensor Cable

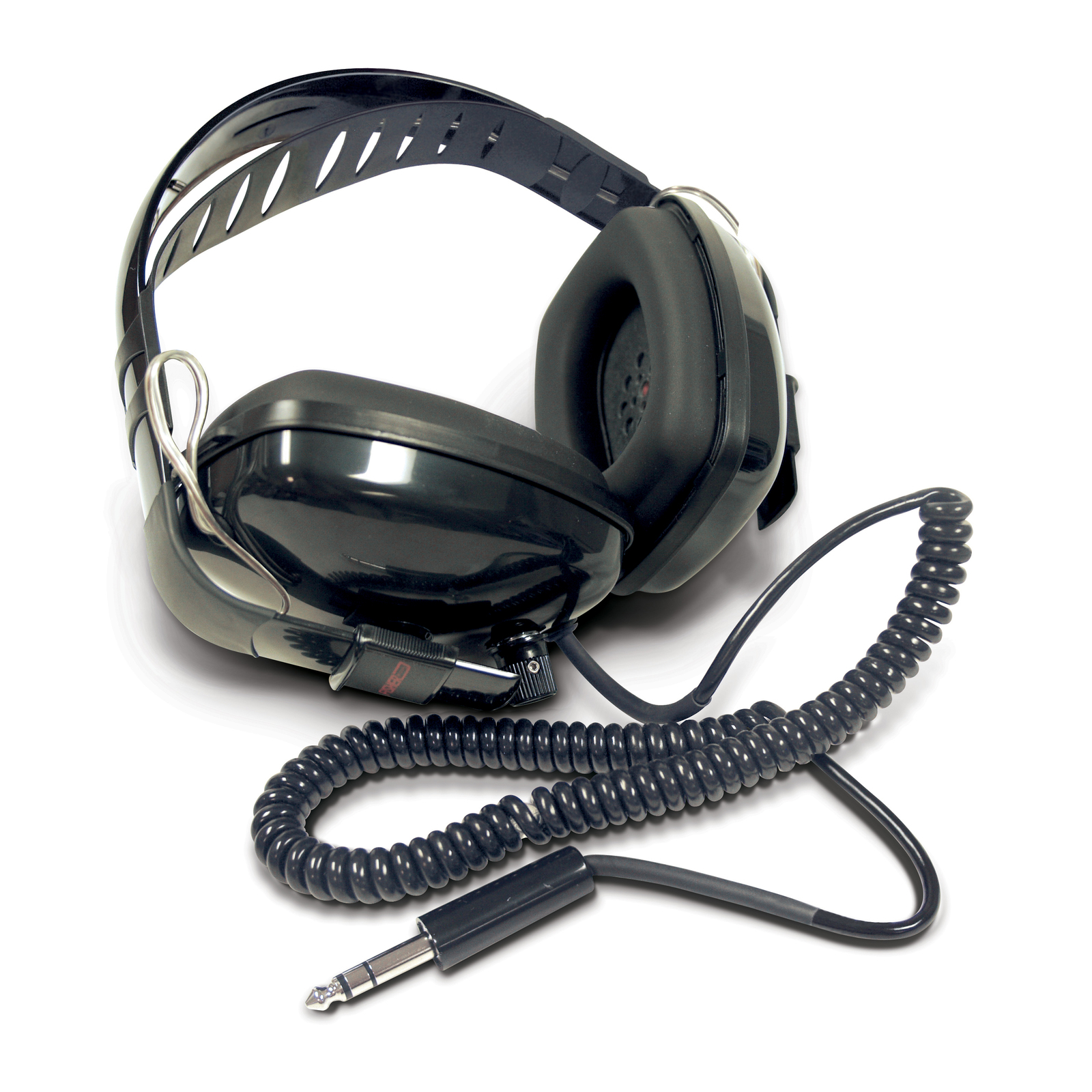

Headphones

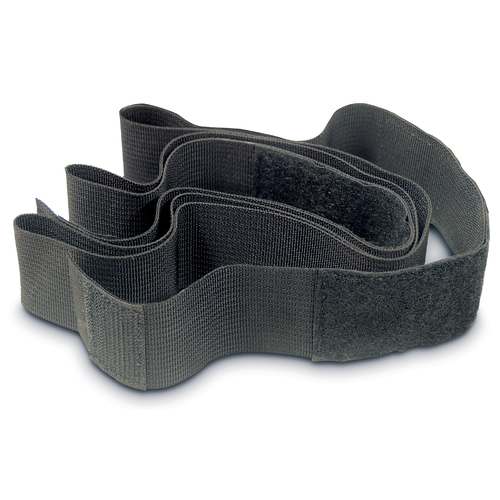

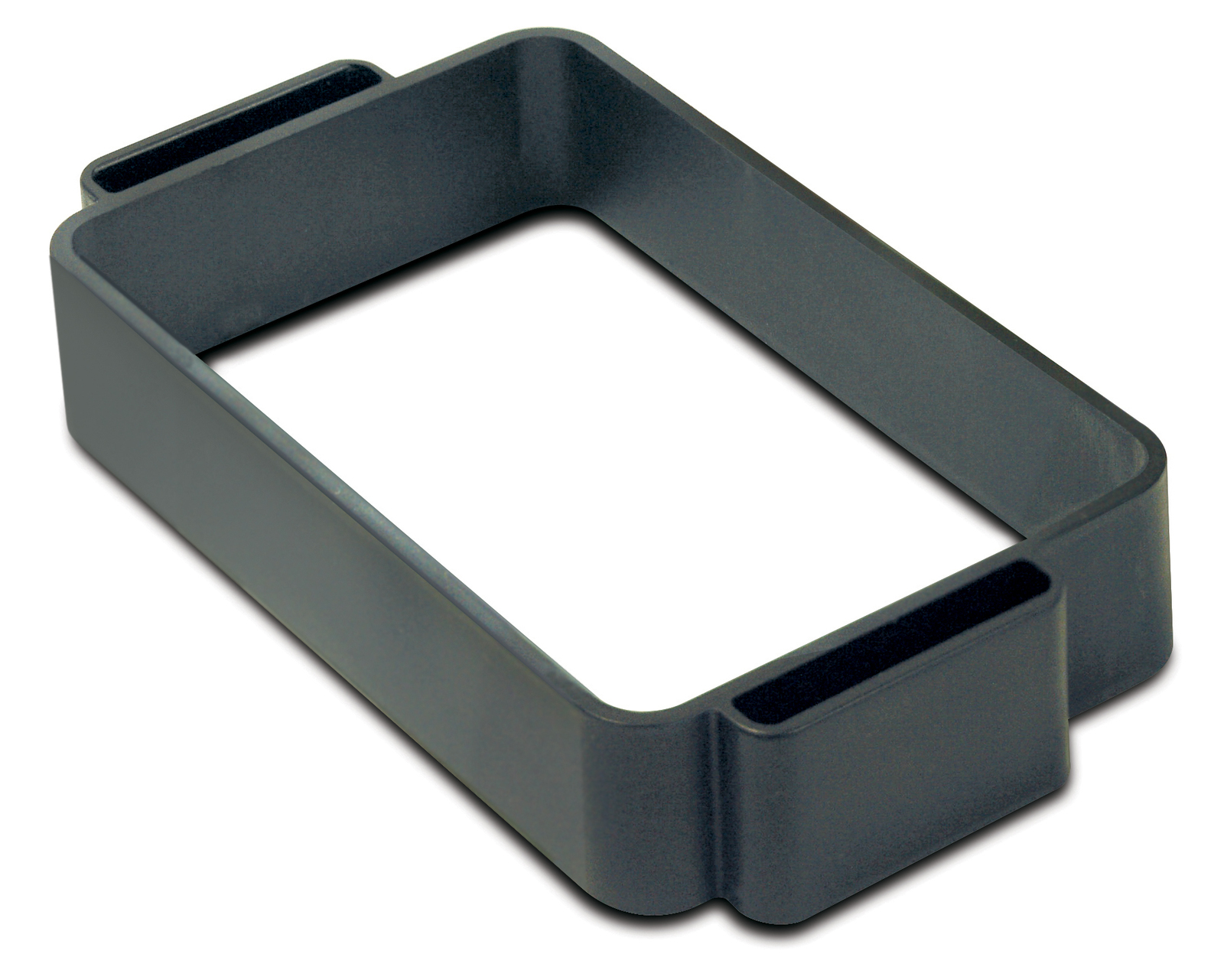

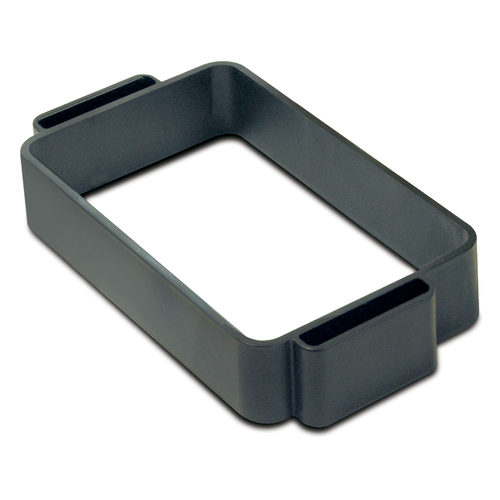

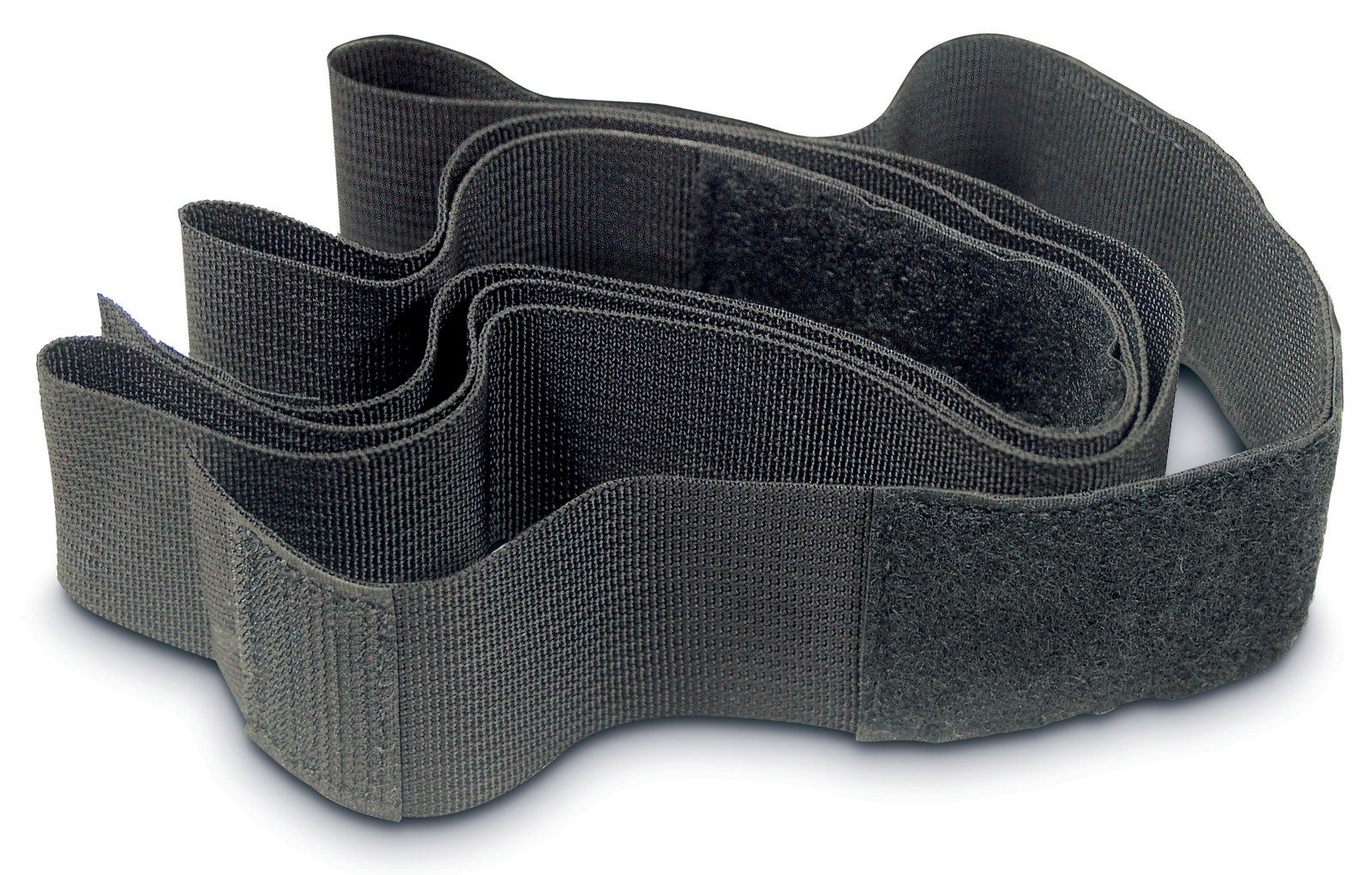

Carrying Strap/Housing Mounting Bracket
Carry case

SPECIFICATIONS
Operating Frequency:
60 Hz – 6 kHz, Gain = 60 db
20 Hz – 60 Hz, Gain > 55 dB
Filter Types and Frequency Ranges:
All Pass: 60 Hz to 6 kHz
Low Pass: Adjustable cut-off frequency from 150 Hz to 2.4 kHz
High Pass: Adjustable pass band frequency from 150 Hz to 2.4 kHz
Band Pass: Adjustable center frequency from 150 Hz to 2.4 kHz
Output Indications:
Audio: High performance headphones (64 ohms)
Visual: LCD bar graph and 2-digit numeric display
Grade of Protection: Splash Proof
Battery Test: Automatic, real time battery level indicator
Battery Quantity/Type: 2 / 9V Alkaline
Battery Life: 50 Hours (approximately)
Carrying Case Dimensions: 21”x 6”x 14” (53.3 x 15.2 x 35.6 cm)
Weight: 10 lbs. (4.5 kg) (unit in carrying case)
